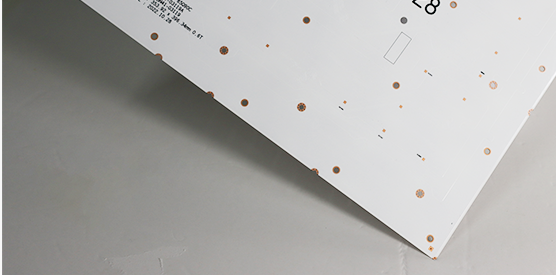

MINI Optoelectronic Board Process Solution

Product Introduction and Process Features

MiniLED backlight refers to using MiniLED as the backlight for LCD panels. By setting up
a large number of Mini LED chips in the backlight module, it achieves ultra-high contrast,
ultra-high brightness, and ultra-high color gamut image quality performance. Simply put, it
means replacing thousands of MiniLED chips with several large LED backlights, so TVs
with MiniLED backlights have high brightness and contrast

Reflectivity ≥ 85%

Yellow value B ＜ 3

Size shrinkage
rate ± 50um

Pad Gap
75um-112um

Ink thickness
control
26+/-3um

PAD size (0.1-0.2
mm) tolerance ±
10%

Mini LED process characteristics
